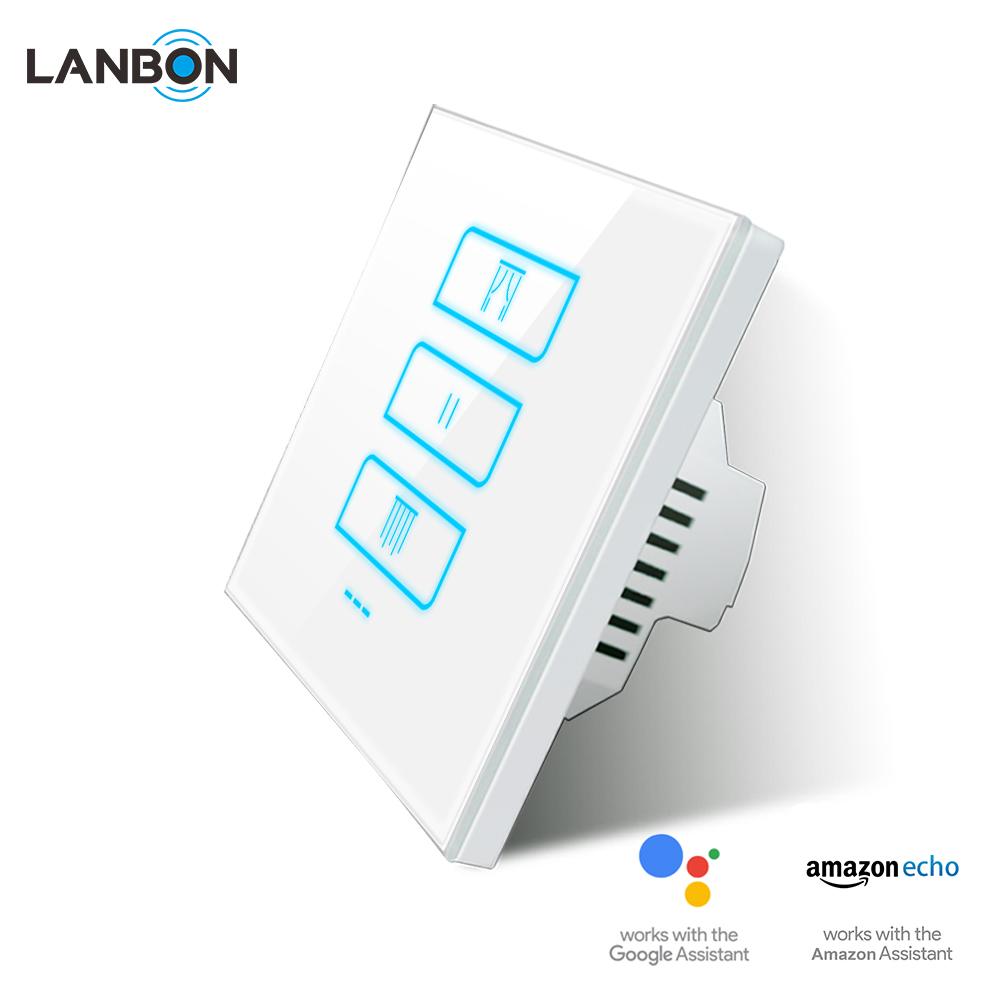

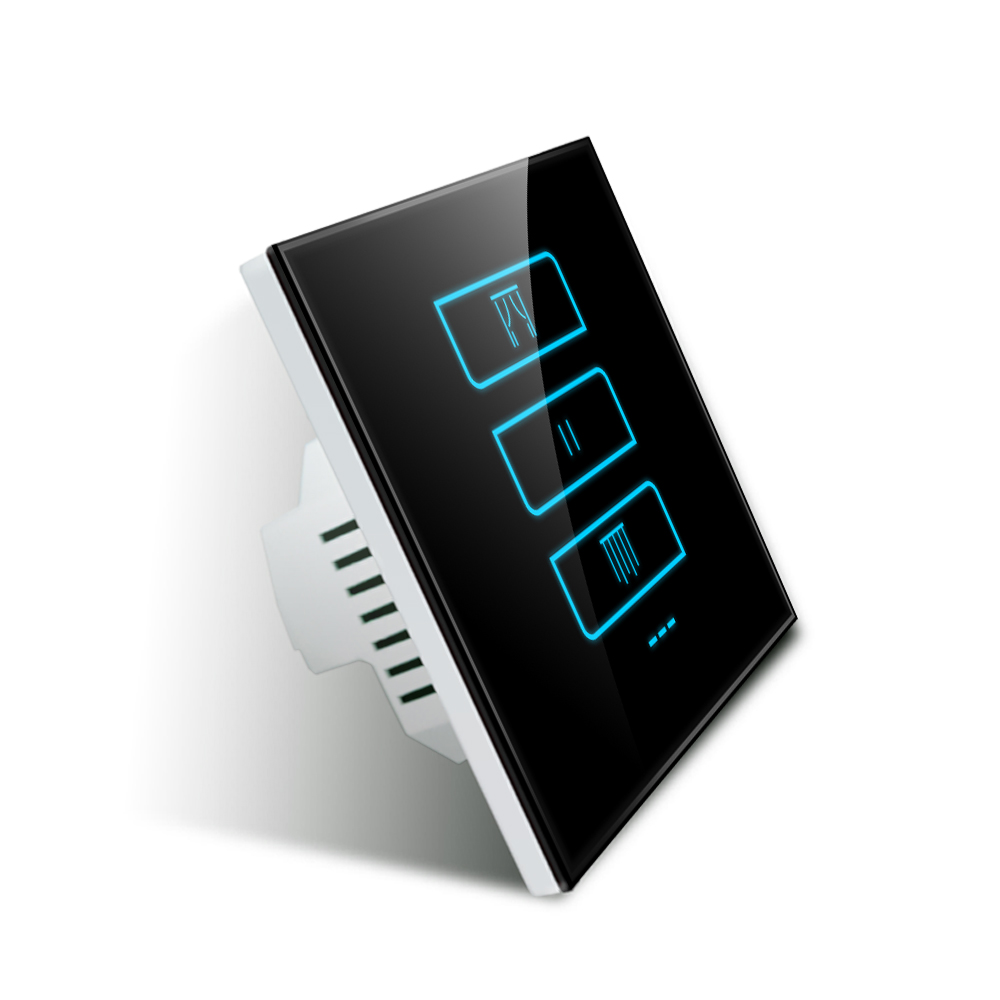

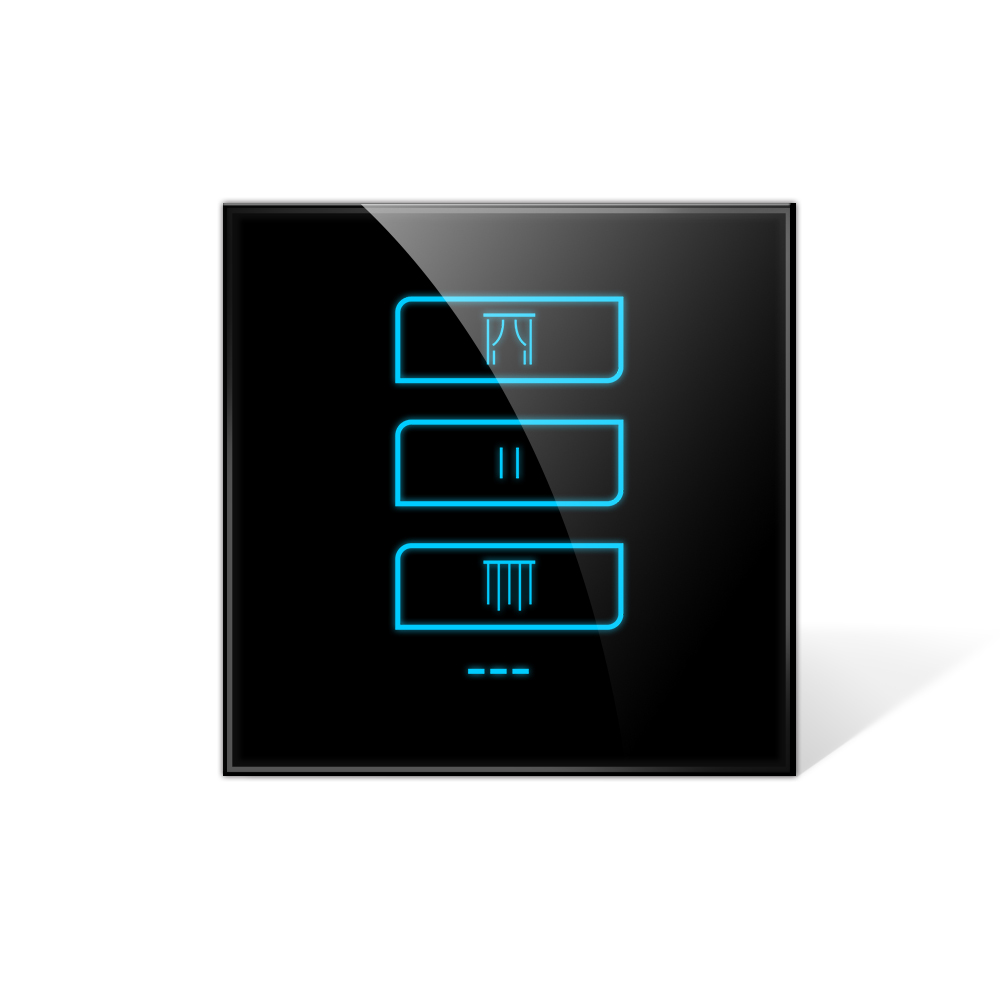

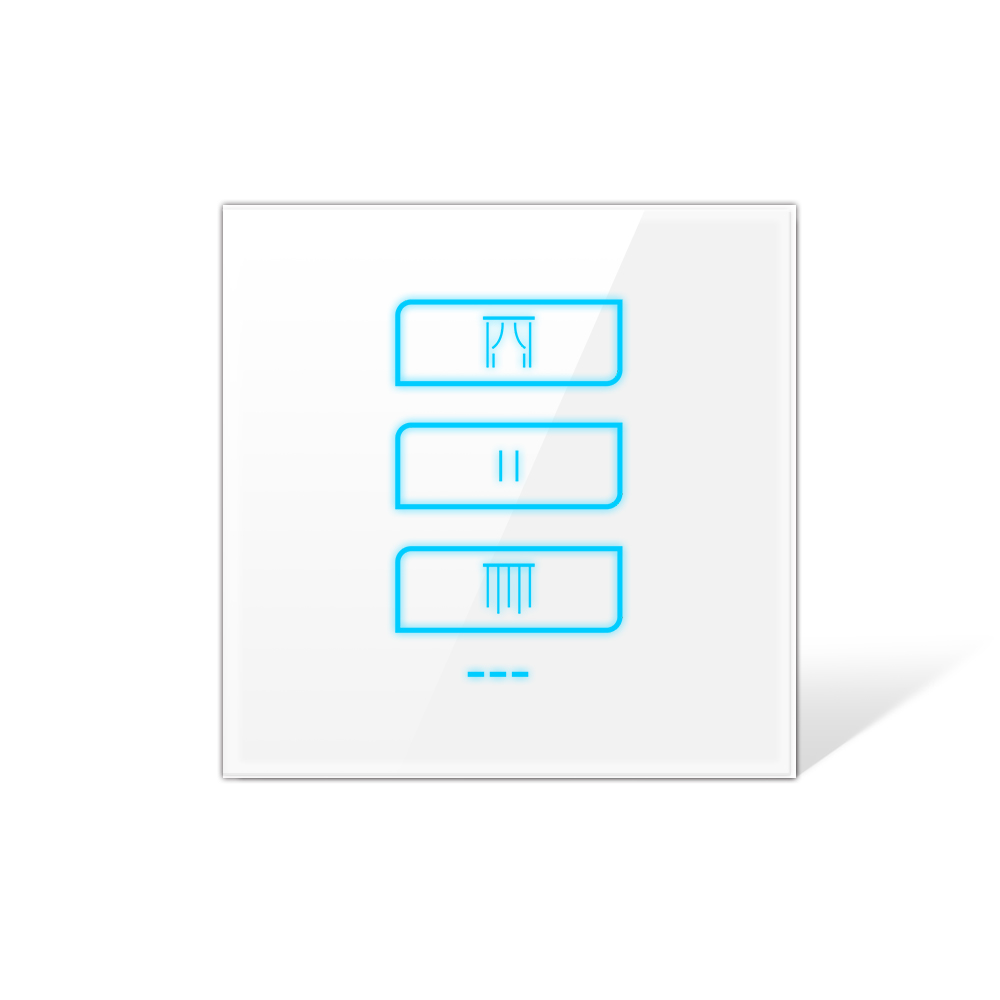

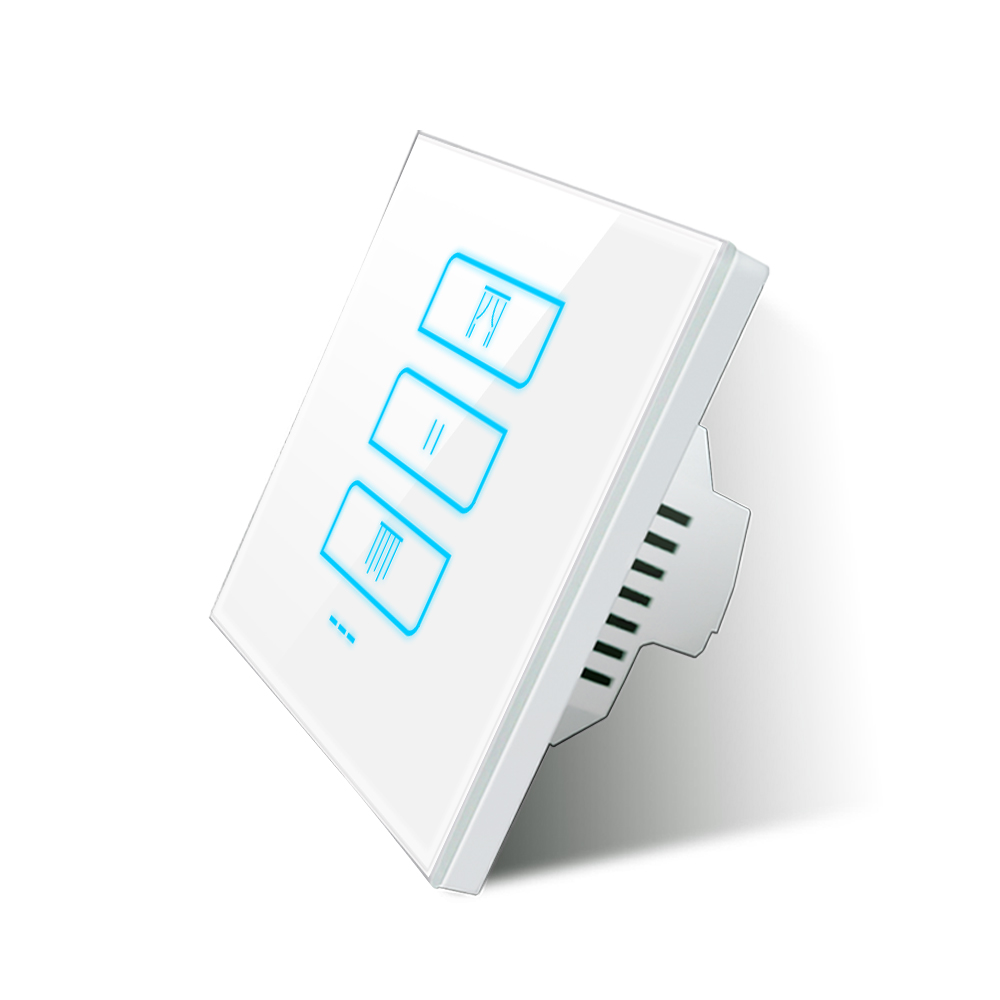

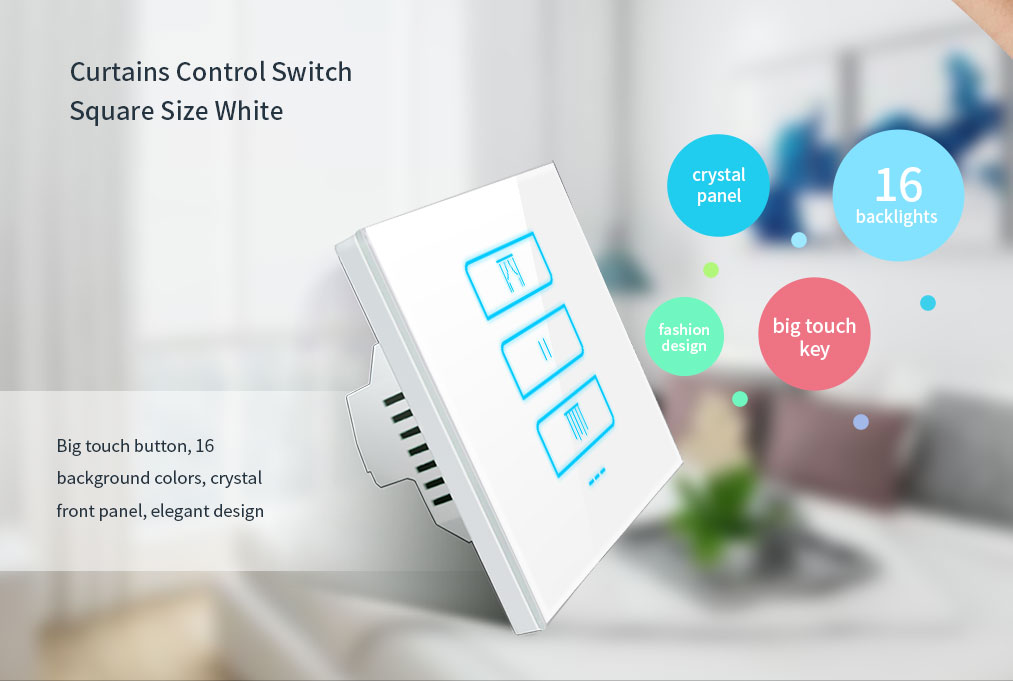

L7 Curtains Control Switch(Square)

Size:85×85×32mm

Item no:L7-HC

Weight:0.3kg

Packing box size:141×103×47mm

Panel:Tempered Crystal Glass

Bottom Materials:Retardant PC

Rated voltage:AC 100-250V 50/60Hz

Rated Load:200W

Load type:horizental curtain motor/vertical

curtain motor/electric door etc.

Wireless standards:IEEE 802.15.4

Frequency range:2.405GHz~2.480GHz

Receiving sensitivity:-97dBm@250kbps

Operating temperature:-25 degree to +60 degree

Relative humidity:<95%
